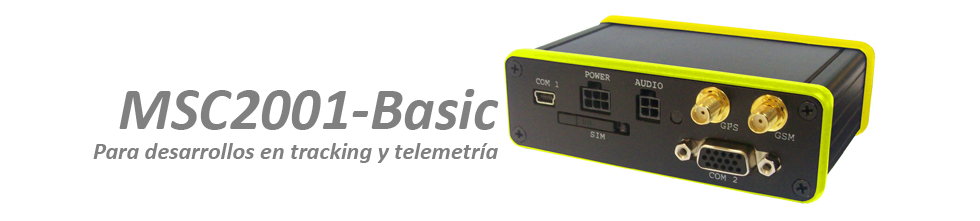

MSC2001-BASIC

"The perfect partner for developers"
The MSC2001-Basic  include XT65 module, a logical combination of GPS and GSM technology, which considerably simplifies the development of tracking applications intended for use in fleet management, logistics, navigation, and for protecting vehicles, and buildings. The time required for developing new applications and launching them on the market can be dramatically reduced due to the smart integration of GPS and GSM/GPRS functionalities and the integrated JavaT Open Platform.
Since Java™ Open Platform has been integrated in MSC2001-Basic, software engineers can develop new applications quickly and at moderate cost, for valuable resources such as RAM, a controller and a TCP/IP stack are already available and don't need to be provided at extra expense.
New areas of use in fields such as fleet management, logistics, navigation, and security will all profit from this full-feature M2M tracking platform, which will make brand new services possible as well as speeding up the development stage.


GENERAL FEATURES:



Communications module Siemens/Cinterion:
GSM/GPRS Quad-Band (850/900/1800/1900MHz)
GPRS multi-slot class 12
GSM release 99
Control via standardised (Hayes 3GPP TS 27.007
and 27.005) and enhanced AT commands
SIM Application Toolkit (release 99)
TCP/IP stack access via AT commands
Internet Services: TCP, UDP, HTTP, FTP, SMTP, POP3



Specification for GPRS data transmission:
GPRS class 12
Mobile station class B
PBCCH support
Coding schemes CS 1-4



Specification for SMS:
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode



GPS  Module U-Blox:
Receiver 16 channel, L1 1575.42 MHz
Accuracy Position: 2.5 m CEP; 5.0 m SEP
Position with DGPS/SBAS: 2.0 m CEP; 3.0 m SEP
GPS dedicated AT commands
Support of SBAS (WAAS/EGNOS) data
GPS active antenna supply: 3.0 V
A-GPS enabled
Tracking sensitivity: -157 dBm (with external antenna)
Date WGS-84
Start-up Time:
Hot start: < 3.5 s
Warm start: 33 s
Cold start: 34 s
Protocols: NMEA-0183 V2.3, RTCM protocol V2.2, UBX binary protocol



Interfaces:
SMA female connector for external GSM antenna
SMA female connector for external GPS antenna
Input for micro and speaker
USB 2.0 port service
HD15 female connector multi interface:
4 Digital I/O
2 Analog Input
1 I2C bus
1 SPI bus
1 RS232 serial port



Java™ features:
CLDC 1.1 Hl
J2ME™ profile IMP-NG
Location API (JSR179) for GPS access
Secure data transmission with HTTPS, SSL and PKI



Over-the-air update:
Application SW: OTAP
Firmware: FOTA (OMA compliant)



Technical Specifications:
Encapsulation: Duralumin
Dimensions with connectors: 105x80x32mm
Power supply: 6V to 48V DC
Maximum consumption (12VDC):
Sleep mode: 6mA
Standby mode: 20mA
Running mode: 60mA
Transmit mode (GPRS): 200mA



Maximum working range:
Operating temperature: - 30 ° C to 75 º C
Storage temperature: - 30 ° C to 85 º C
Shutdown temperature: 90 º C
Operating Humidity: 0 to 99% non condensing



Accessories included in MSC2001-Basic package:
1 Unit MSC2001-Basic
Fixing support MSC2001-Series

Included in MSC2001-Basic evaluation Kit:
2 units MSC2001-Basic
2 Power supply cable
1 HD15 Multiservice cable
1 combo antenna GSM/GPRS/GPS
MSC2001 Development Manual
Software Development Kit (SDK)



Optional Accessories
HD15 Cable multi interface
Cable service for evaluation & monitoring
Voice Cable for micro and speaker
USB Cable for service
GSM and GPS external antennas (see list)
Tilt sensors and accidents (see list)
